2 Piece, Bolted Diaphragm Seal
The ADS-101A, 2 piece bolted diaphragm seal is used in a variety of applications.
The diaphragm seal is made from 316L stainless steel. For corrosive applications, PVC and Teflon options are available.
ADS-101A Diaphragms seals come in a variety of connections, male and female threaded. They are also available with a 1" ANSI flange and cotton reel varieties.
Additional Info
- Material: 316 Stainless Steel
- Diaphragm: 316 Stainless Steel. Other options available on request
- Pressure Range: All Stainless Steel - 10,000kPa. Other options available
- Instrument Connection: Various
- Process Connection: Various
Download attachments:
Image Gallery

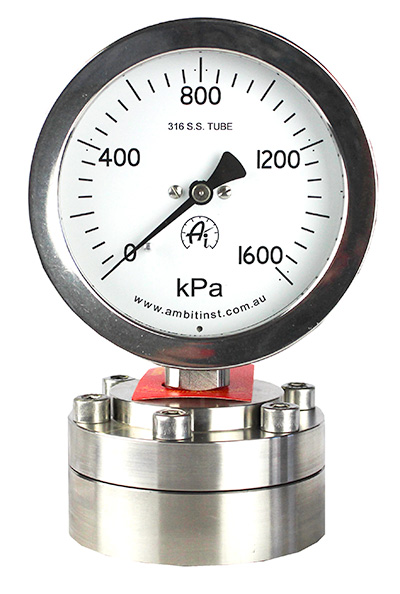

ADS101A Diaphragm Seal with Pressure Gauge
